Profibus SK FRNC + Industry

Applications :

• The application of these Profibus SK cables are in the cell and field area, just as for conventional types. The great advantage of this new system is the quick connection of the cable to the respective plugs. This type of processing also avoids errors. The types mentioned here are suitable for indoor laying (special FRNC jacket) and heavy industry laying (PUR jacket).

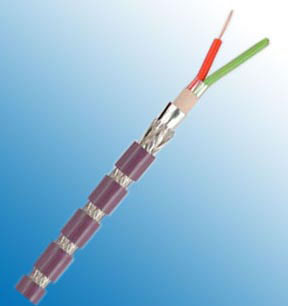

Construction :

• Type/Area of Application	Fixed Installation, Indoor/Heavy Duty
  Cable Construction	1x2x0.64 mm
  Inner Conductor Diameter	Copper, bare (AWG 22/1)
  Conductor Insulation	Foam-skin-PE
  Conductor Colors	red, green
  Stranding Element	2 conductors + filler
  Wrapping	Polyester foil over stranded bundle
  Shielding	Polyester foil, aluminum-lined
  Total Shielding	Copper braid, tinned
  Outer Jacket Material	FRNC/PUR
  Outer Diameter	8.0 mm ± 0.4 mm
  Outer Jacket Color	Violet

Electrical Data :

• CharacteristicImpedance@3-20Hz	150 Ω ± 10 Ω
  Conductor Resistance	57.1 Ohm/km max.
  Insulation Resistance	1.00 GOhm x km min.
  Mutual Capacitance@1KHz	35.0 nF/km nom.
  Working Voltage	300V
  Test Voltage	1.5 KV
  Attenuation	9.6	kHz	<	2.5	dB/km
  	38.4	kHz	<	4	dB/km
  	4	MHz	<	22	dB/km
  	16	MHz	<	42	dB/km

Technical Data :

• Weight	approximately 73.0 kg/km	approximately 71.0 kg/km
  Min. Bending Radius (Laying)	18 x OD mm	15 x OD mm
  Operating Temp.Range, min.	- 25 °C	- 40 °C
  Operating Temp.Range, max.	+60 °C	+70 °C
